Interface Modules

General Purpose Relay Modules

1,2 C/O General Purpose, 1 C/O Fuse at pole General Purpose

  • Fuse at poleLED & Freewheeling diode across coil Jumpers for Coil Looping
  • Number of channels: 4,8
  • Contact Configuration: 1C/O, 2C/O.

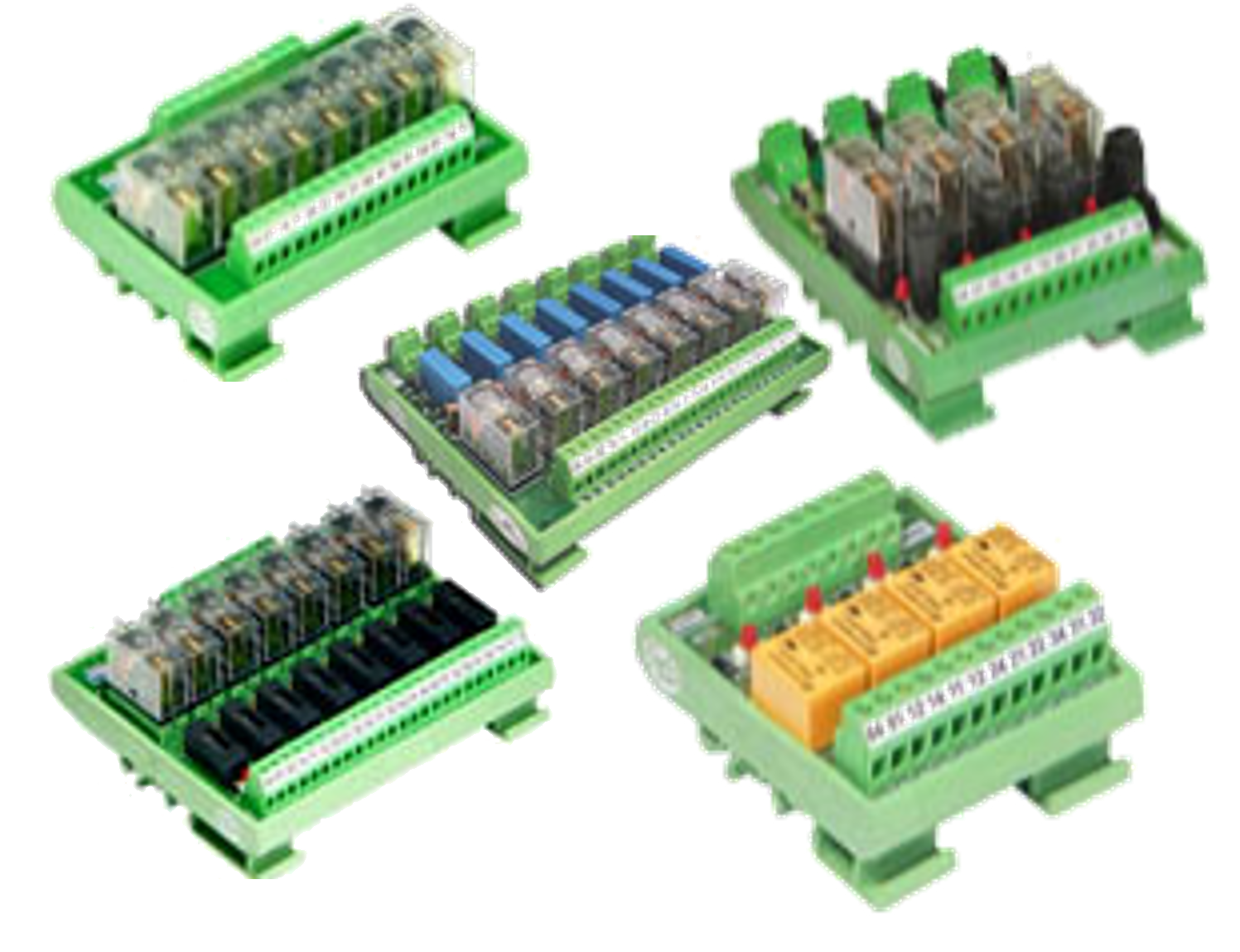

Relay Interface Modules - Standard

  • LED & Free wheeling diode across coil.Reverse Polarity blocking diode.
  • Number of channels: 1, 2, 4, 6, 8, 12, 16
  • Protection against short circuit, overload & overvoltage

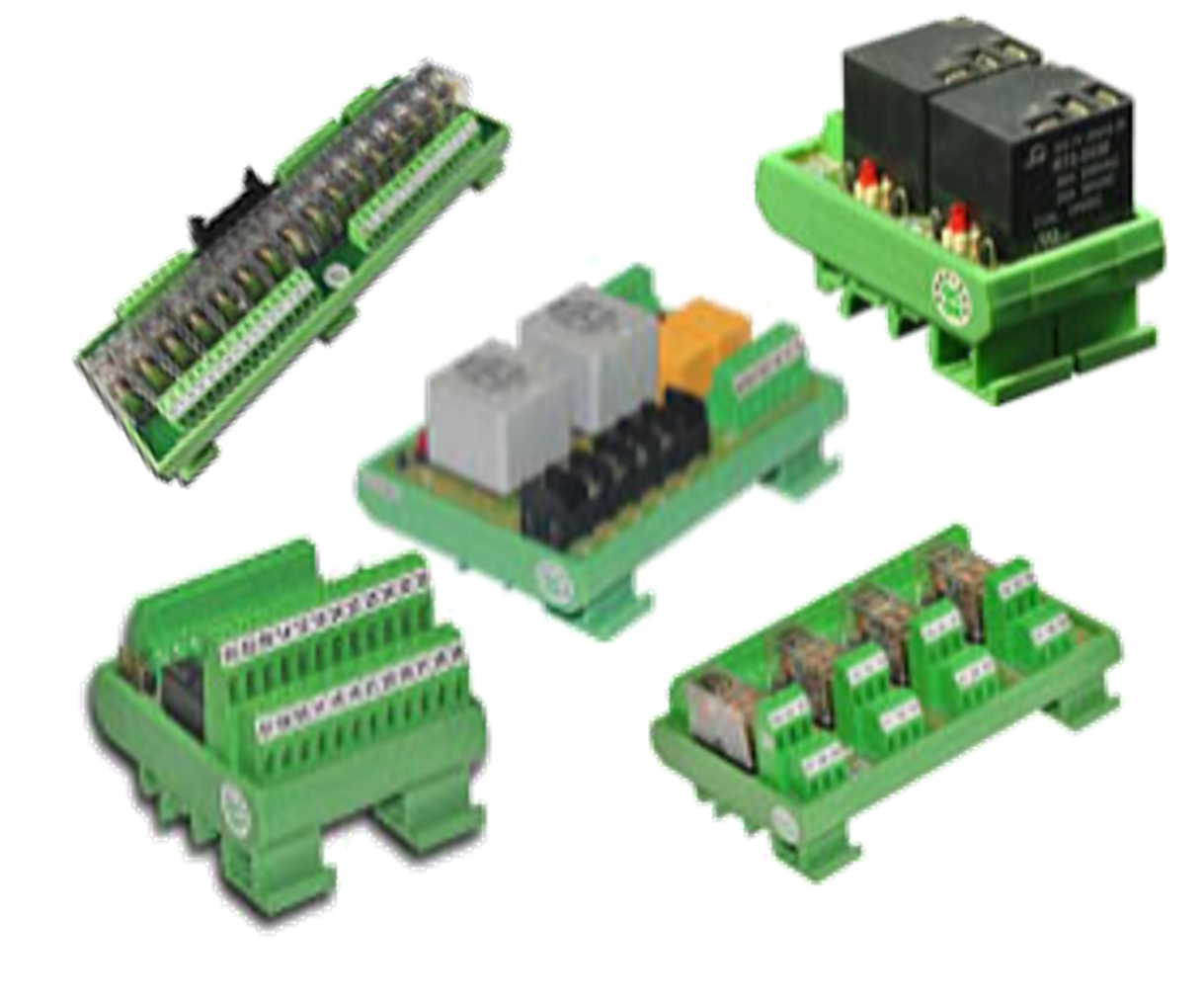

Relay Interface Modules - Special

  • Coil Connection cascading through FRC Connector, suitable for open collector output terminals
  • Number of channels: 1, 2, 4, 6, 8, 12, 16
  • LED across coil, Low current control input

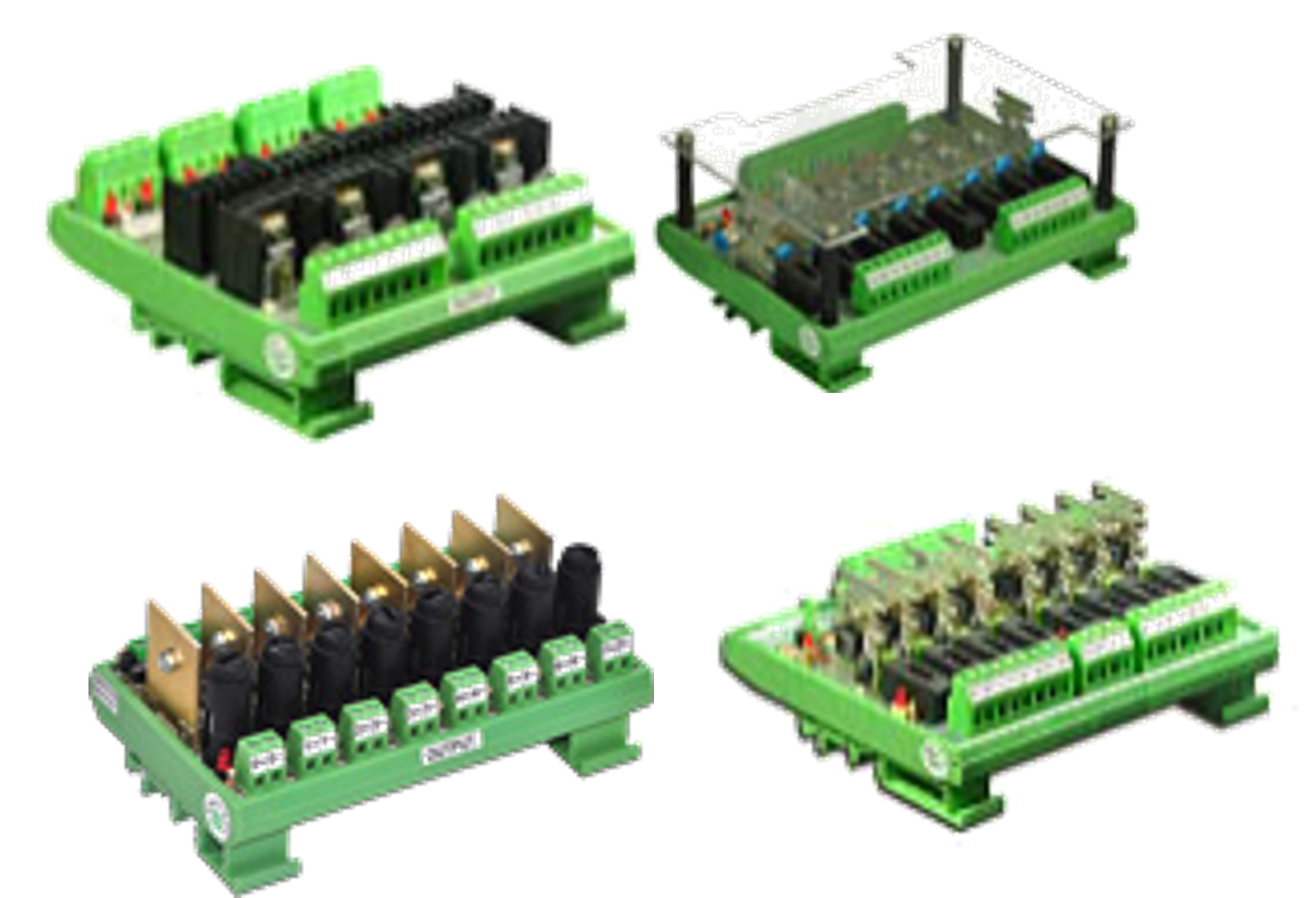

Solid State Isolated/Non-Isolated Modules

  • Optical Isolation between Input & Output
  • Fuse at output for over current protection
  • Number of channels: 2, 4, 6, 8, 12, 16
  • Protection against short circuit, overload & overvoltage
  • Electrical life is 100 times that of electromechanical relay

Opto Interface Module

DC Opto Isolator/ Level Shifter/ NPN/ PNP Converter, AC Input Opto Isolator, High Speed Opto Interface Module

  • Optical Isolation between Input & Output
  • Can be used as NPN to PNP Converter or vice versa
  • Low input current

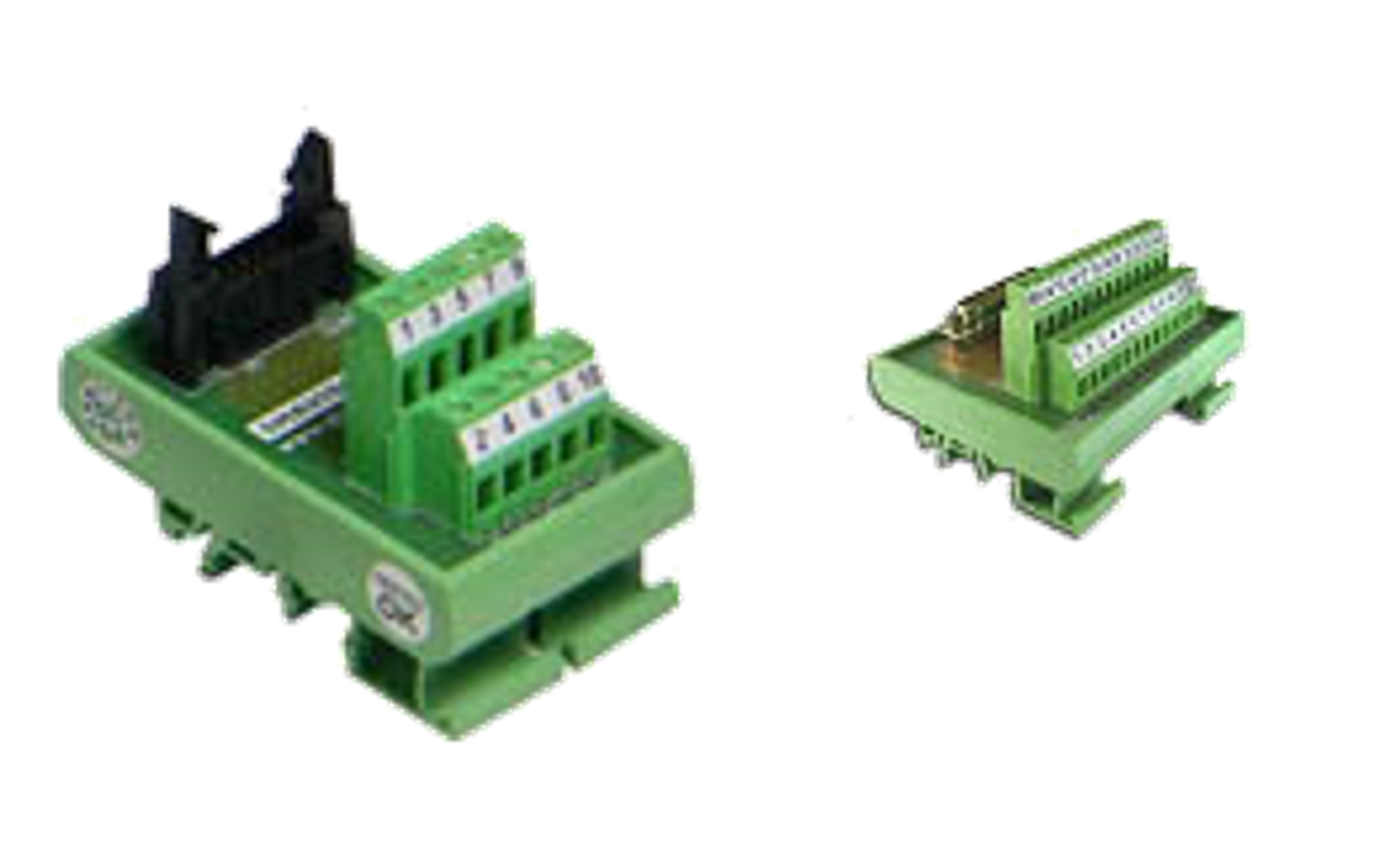

FRC/D-SUB(M/F) Connector To Wire

FRC To Screw Connector, DSUB To Screw Connector

  • INPUT SIDE FRC / D-SUB
  • OUTPUT SIDE Screw type, suitable for 2.5mm sq. wire
  • Voltage Rating : 100VDC, Current Rating : 500mA

Proximity Sensor Interface

  • PNP, NPN or Bipolar Indication by Jumpers
  • Grouping of Terminals for PLC Connections
  • Grouping of Terminals for Sensor Connections
  • Common Power Supply Connections
